OD 50mm DC Planetary Gear Motor 30nm 5000rpm Brushed

Product Categories
Wenzhou Tyhe Motor Co., Ltd.
Contact Now

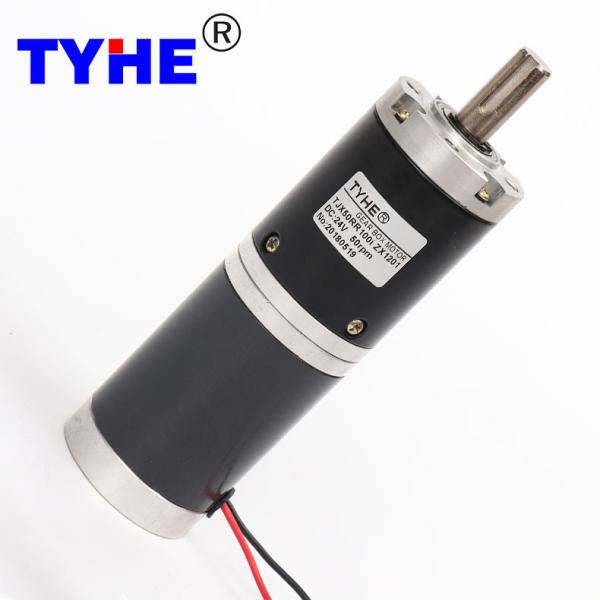

OD 50mm DC Planetary Gear Motor 30nm 5000rpm Brushed

Brand Name : TYHE

Model Number : TJX50RR

Certification : CE/ROHS/ISO9001

Place of Origin : China

MOQ : 100pcs

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 15 working days after payment

Packaging Details : Foam wrapped, carton packed

Size : OD 50mm

Voltage : 12v-24v or customized

Speed : 1-2000rpm Customized

Torque : 25.0N.m

Gear material : Steel gears

Commutation : Brush /brushes /brushed

Type : DC Planetary Gear Motor, Dc mini Motor

Keywords : Factory 50mm planetary gearhead 12v 24v 24 volt 40w 5000rpm 1rpm 30nm 400kg high torque brush dc planetary gear motor with rohs

Contact Now

Products Description

Factory 50mm planetary gearhead 12v 24v 24 volt 40w 5000rpm 1rpm 30nm 400kg high torque brush dc planetary gear motor with rohs

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY5078 12 7000 1500 5600 5.75 75.62 44.34 64.26 226.86 42.00
ZY5078 24 2000 170 1600 0.61 55.20 9.25 63.26 165.60 4.25
ZY5078 24 5000 470 4000 1.68 60.35 25.28 62.54 181.05 11.75
ZY5078 24 6000 610 4800 2.19 67.39 33.87 64.57 202.17 15.25
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 12V-7000RPM Input 24V-2000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
42.5 90 3.7 1513.5 39.91 251.81 755.44 432.4 8.32 183.82 551.45
42.5 90 5.2 1076.9 39.91 353.90 1061.70 307.7 8.32 258.34 775.01
55.8 81 13.7 408.8 35.92 839.16 2517.47 116.8 7.49 612.55 1837.66
55.8 81 19.2 291.7 35.92 1176.04 3528.13 83.3 7.49 858.47 2575.41
55.8 81 26.9 208.2 35.92 1647.68 4943.05 59.5 7.49 1202.75 3608.26
55.8 81 35.0 160.0 35.92 2143.83 6431.48 45.7 7.49 1564.92 4694.76
69.3 73 51.0 109.8 32.37 2815.33 8446.00 31.4 6.75 2055.10 6165.29
69.3 73 71.0 78.9 32.37 3919.38 11758.15 22.5 6.75 2861.02 8583.05
69.3 73 100.0 56.0 32.37 5520.26 16560.78 16.0 6.75 4029.60 12088.80
69.3 73 139.0 40.3 32.37 7673.16 23019.48 11.5 6.75 5601.14 16803.43
84.5 65.6 189.0 29.6 29.09 9375.67 28127.01 8.5 6.07 6843.92 20531.75
84.5 65.6 264.0 21.2 29.09 13096.17 39288.52 6.1 6.07 9559.76 28679.27
84.5 65.6 369.0 15.2 29.09 18304.88 40000.00 4.3 6.07 13361.93 40000.00
84.5 65.6 514.0 10.9 29.09 25497.85 40000.00 3.1 6.07 18612.56 40000.00
84.5 65.6 721.0 7.8 29.09 35766.45 40000.00 2.2 6.07 26108.28 40000.00
100 59 699.0 8.0 26.16 31186.44 40000.00 2.3 5.46 22765.03 40000.00
100 59 977.0 5.7 26.16 40000.00 40000.00 1.6 5.46 31818.94 40000.00
100 59 1367.0 4.1 26.16 40000.00 40000.00 1.2 5.46 40000.00 40000.00
100 59 1911.0 2.9 26.16 40000.00 40000.00 0.8 5.46 40000.00 40000.00
100 59 2672.0 2.1 26.16 40000.00 40000.00 0.6 5.46 40000.00 40000.00
100 59 3736.0 1.5 26.16 40000.00 40000.00 0.4 5.46 40000.00 40000.00
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 24V-5000RPM Input 24V-6000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
42.5 90 3.7 1081.1 22.75 200.97 602.90 1297.3 30.48 224.41 673.23
42.5 90 5.2 769.2 22.75 282.44 847.31 923.1 30.48 315.39 946.16
55.8 81 13.7 292.0 20.47 669.70 2009.11 350.4 27.44 747.83 2243.48
55.8 81 19.2 208.3 20.47 938.56 2815.69 250.0 27.44 1048.05 3144.15
55.8 81 26.9 148.7 20.47 1314.97 3944.90 178.4 27.44 1468.36 4405.08
55.8 81 35.0 114.3 20.47 1710.92 5132.77 137.1 27.44 1910.51 5731.52
69.3 73 51.0 78.4 18.45 2246.83 6740.49 94.1 24.73 2508.93 7526.79
69.3 73 71.0 56.3 18.45 3127.94 9383.82 67.6 24.73 3492.82 10478.47
69.3 73 100.0 40.0 18.45 4405.55 13216.65 48.0 24.73 4919.47 14758.41
69.3 73 139.0 28.8 18.45 6123.71 18371.14 34.5 24.73 6838.06 20514.19
84.5 65.6 189.0 21.2 16.58 7482.43 22447.30 25.4 22.22 8355.28 25065.85
84.5 65.6 264.0 15.2 16.58 10451.65 31354.96 18.2 22.22 11670.87 35012.61
84.5 65.6 369.0 10.8 16.58 14608.56 40000.00 13.0 22.22 16312.69 40000.00
84.5 65.6 514.0 7.8 16.58 20349.05 40000.00 9.3 22.22 22722.83 40000.00
84.5 65.6 721.0 5.5 16.58 28544.10 40000.00 6.7 22.22 31873.85 40000.00
100 59 699.0 5.7 14.91 24888.94 40000.00 6.9 19.98 27792.31 40000.00
100 59 977.0 4.1 14.91 34787.55 40000.00 4.9 19.98 38845.62 40000.00
100 59 1367.0 2.9 14.91 40000.00 40000.00 3.5 19.98 40000.00 40000.00
100 59 1911.0 2.1 14.91 40000.00 40000.00 2.5 19.98 40000.00 40000.00
100 59 2672.0 1.5 14.91 40000.00 40000.00 1.8 19.98 40000.00 40000.00
100 59 3736.0 1.1 14.91 40000.00 40000.00 1.3 19.98 40000.00 40000.00

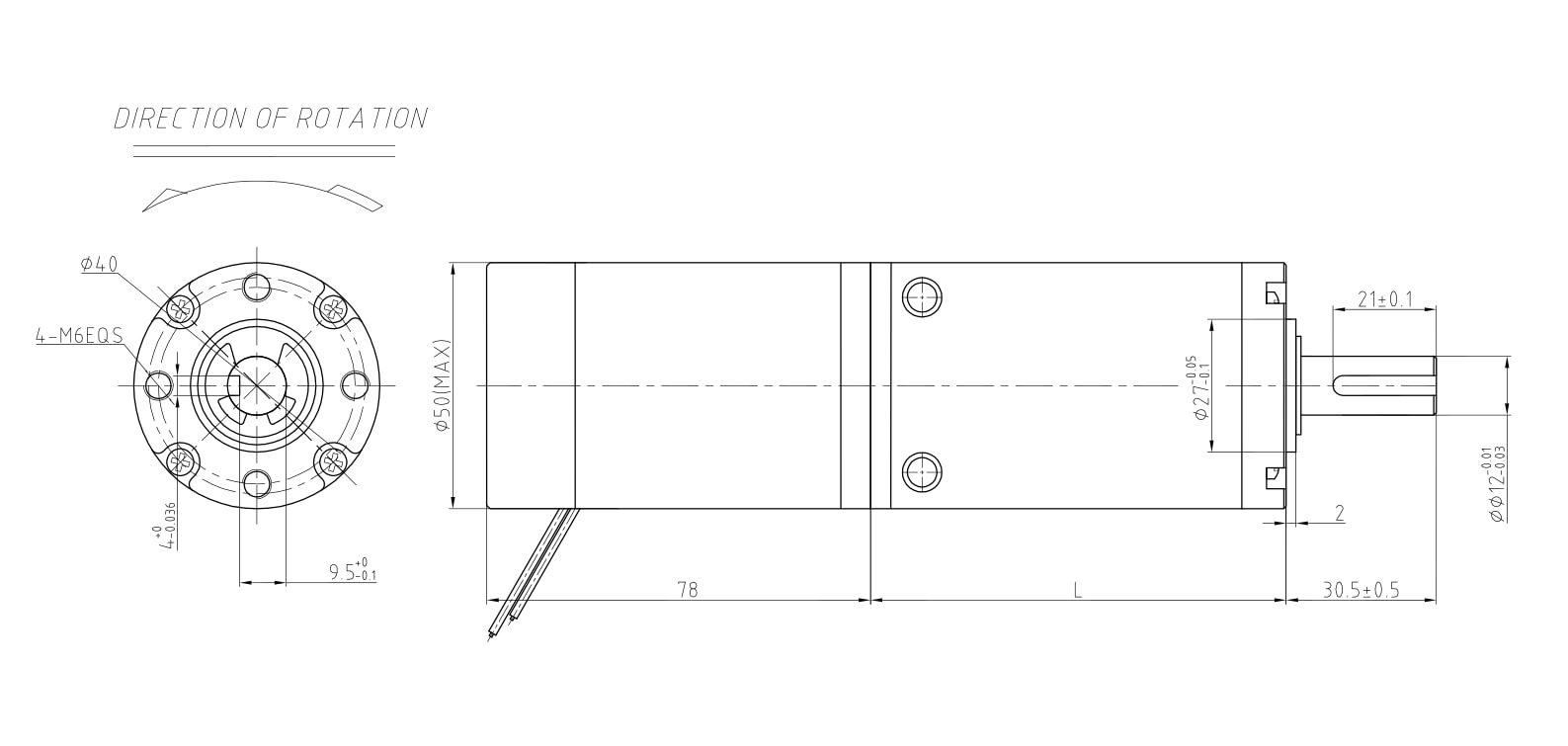

2D drawing

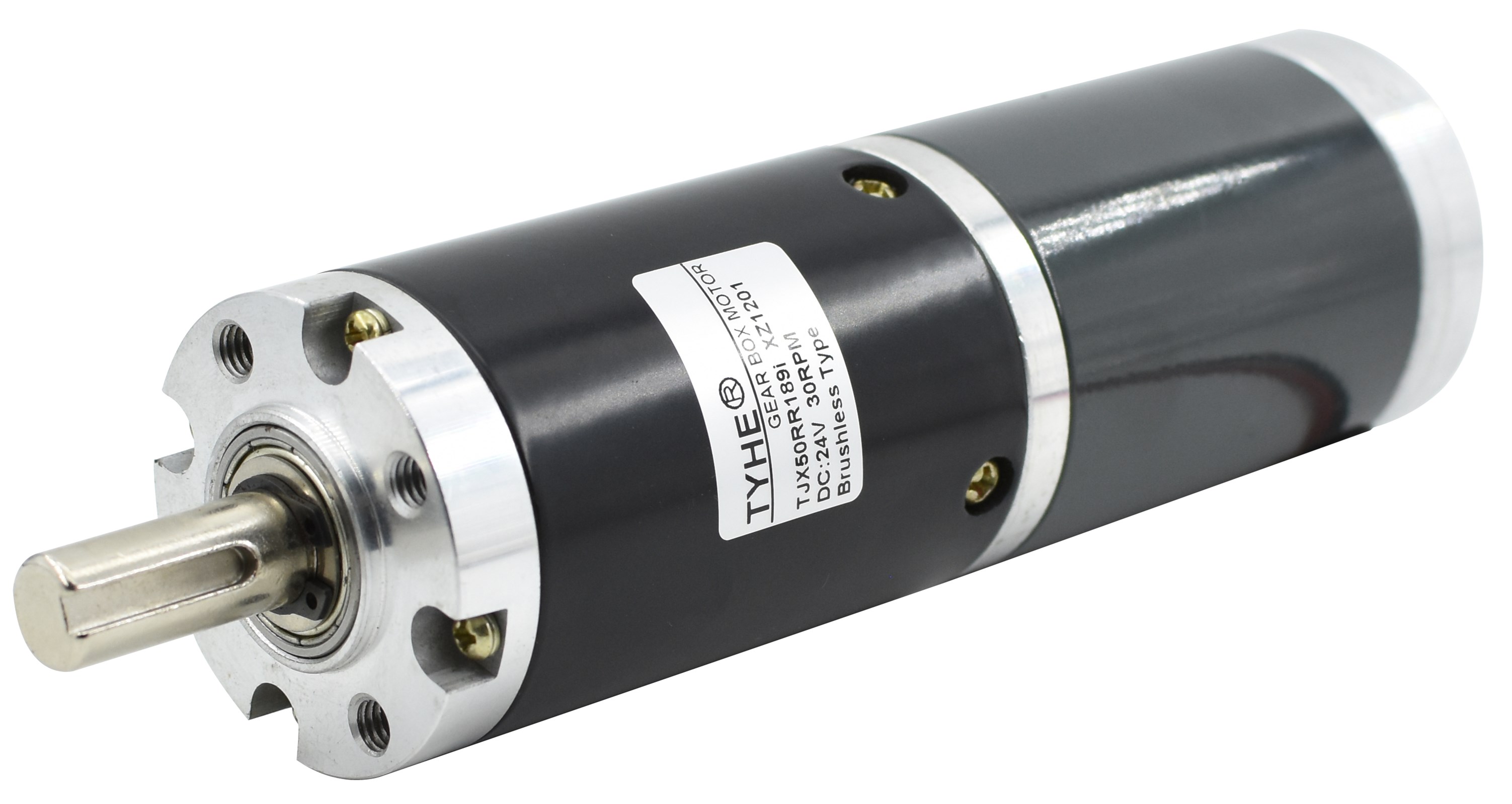

OD 50mm DC Planetary Gear Motor 30nm 5000rpm Brushed


OD 50mm DC Planetary Gear Motor 30nm 5000rpm Brushed

Please let us know your requirements and we will provide you with transmission solutions.

OD 50mm DC Planetary Gear Motor 30nm 5000rpm Brushed

OD 50mm DC Planetary Gear Motor 30nm 5000rpm Brushed
